Self-tapping screws GT3 PH (Z14) 4.8x22mm RAL 9007

Self-drilling screws for metal with TORX socket, steel washer and EPDM seal

Designed for fastening profiled structural steel sheets to thin-walled steel structures (up to 3 mm thick) and for overlapping structural sheet metal connections.

• Model: GT 3 PH Z14

• Size: 4.8x22 mm

• Color: RAL 9007

• Packaging: 250 pcs

• Drilling capacity in steel: up to 3 mm

• Maximum usable length: up to 6 mm

• Socket: TX-25

• Material: galvanized steel

• Corrosion class:C1, C2, C3

• Steel washer diameter:14 mm

Original product of the renowned company Etanco®

Designed for fastening profiled structural steel sheets to thin-walled steel structures (up to 3 mm thick) and for overlapping thick structural sheets.

Additional significant anti-corrosion protection and a perfect match to the covering color in the RAL palette.

2. Aesthetic flat head with TORX socket

The flat head with TORX socket is a solution that combines aesthetics with functionality, making it ideal for applications where the final appearance of the assembly is important. The TORX socket increases work efficiency by reducing the risk of damage.

3. Washer with EPDM seal

The special shape of the steel washer ensures proper placement of the EPDM sealing material.

Made of the best sealing material - EPDM. It does not lose elasticity over time and has a very long aging period. Resistant to changing weather conditions and UV radiation. After installation, it self-vulcanizes to the sheet metal, creating a tight connection.

4. DURA.ZINC Zinc Coating

The basic and most important anti-corrosion protection, and its 12 μm thickness guarantees high quality.

5. Self-Drilling Tapping Tip

The specially developed, reduced ETANCO.Drill.point self-drilling tip ensures optimal drilling through the sheet metal in a short time. The protective zinc coating layer does not wear off during drilling. Translucency is 3 mm.

1. Base material: Sheet metal Trapezoidal

2. Base material: flat sheet metal (sheet metal flashing)

3. Screw socket: TORX 25

4. Maximum drilling capacity: 3.00 mm

5. Zinc coating thickness: 12 μm

8. Tightening torque:3 Nm

9. Recommended rotational speed when installing screws: 1800 rpm

10. Maximum drilling capacity of two elements: 3.00 mm

11. Minimum thickness of the base material: 1.00 mm

All Our products have current reference documents developed in cooperation with renowned research institutes.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

The auction concerns screws in color

• RAL 9007

• other colors,

• different drilling capacities,

• different sizes.

*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.

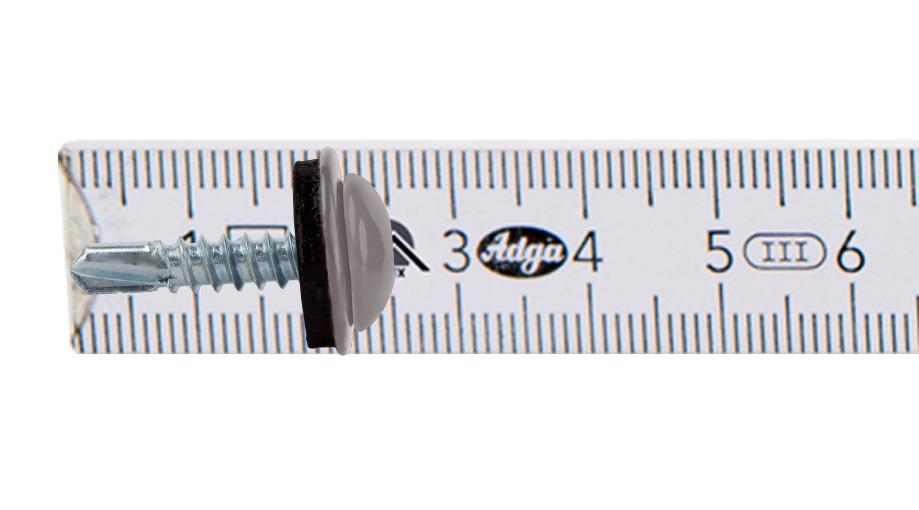

*The measuring cup is not included in the set, it is only used for better product presentation.
