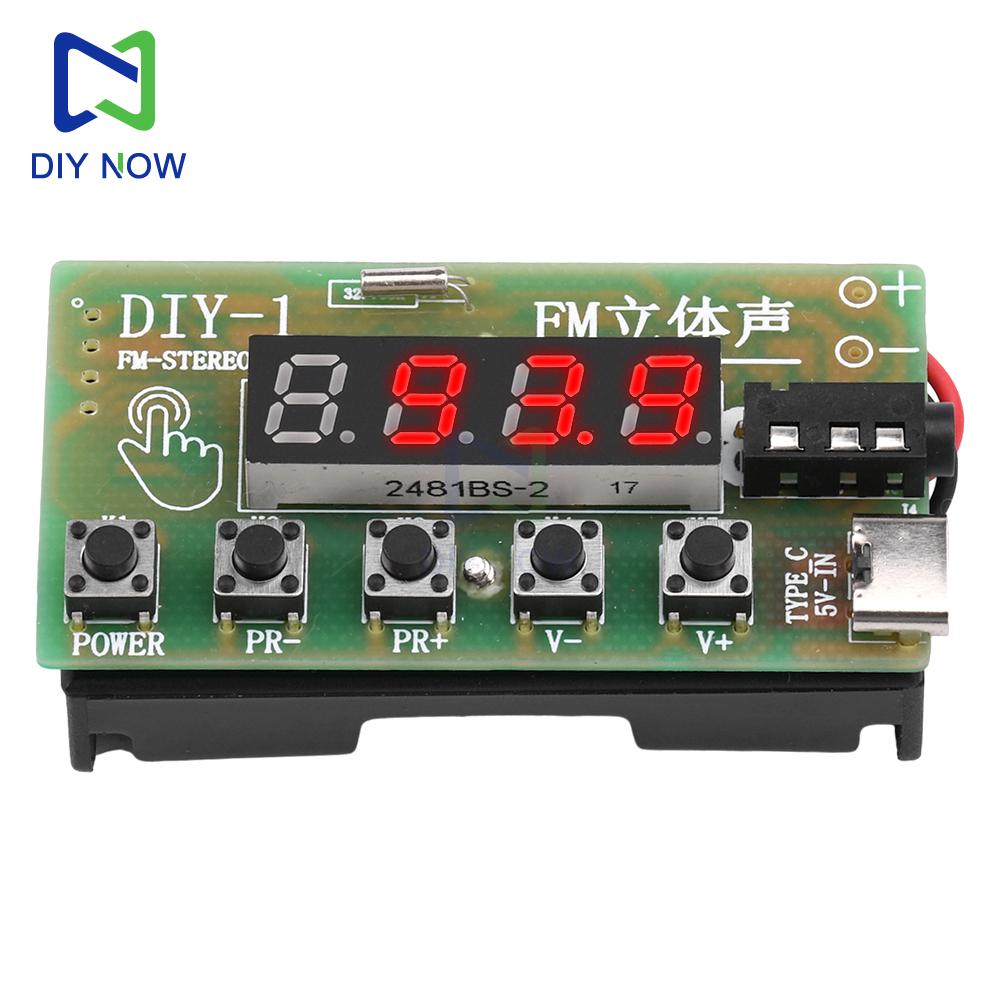

87-108MHz AM/FM Medium Wave FM Dual-Band Stereo Digital Tuner DC 5V Headphone Radio Module TYPE-C DIY Radio Module Kit

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New

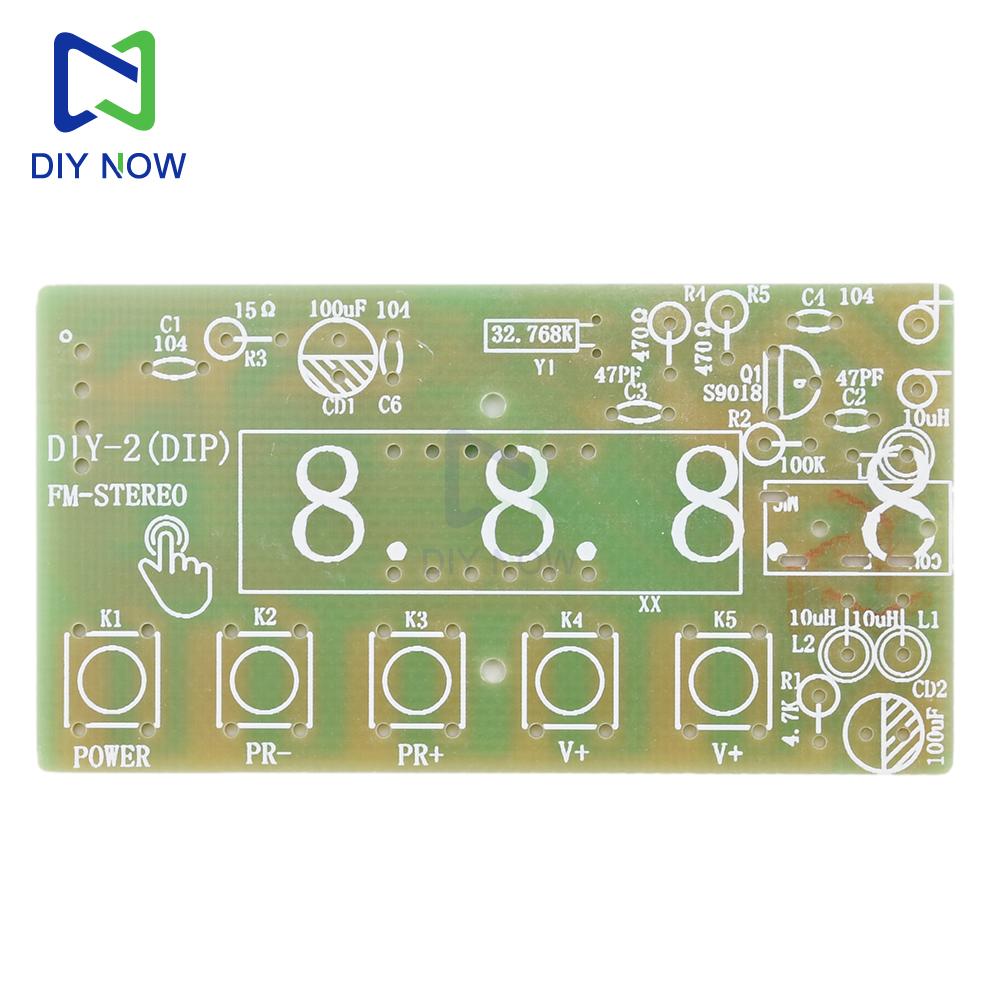

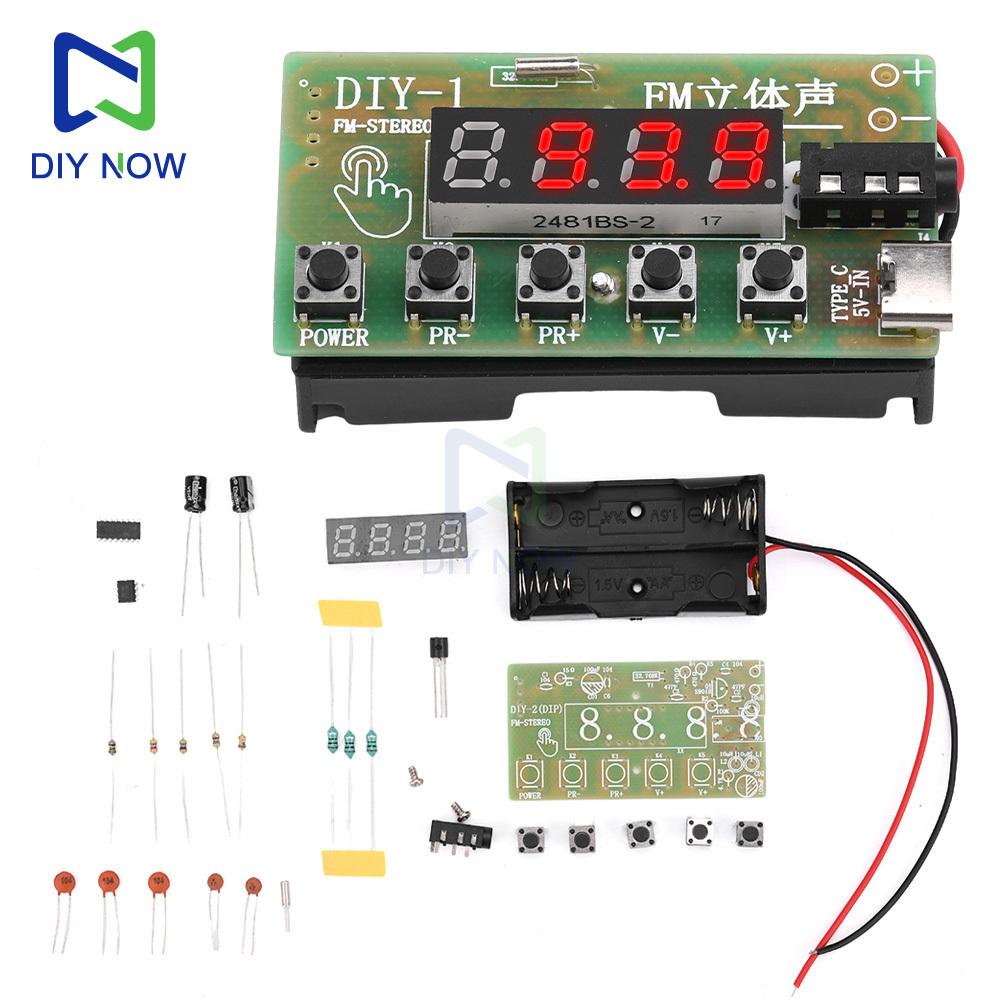

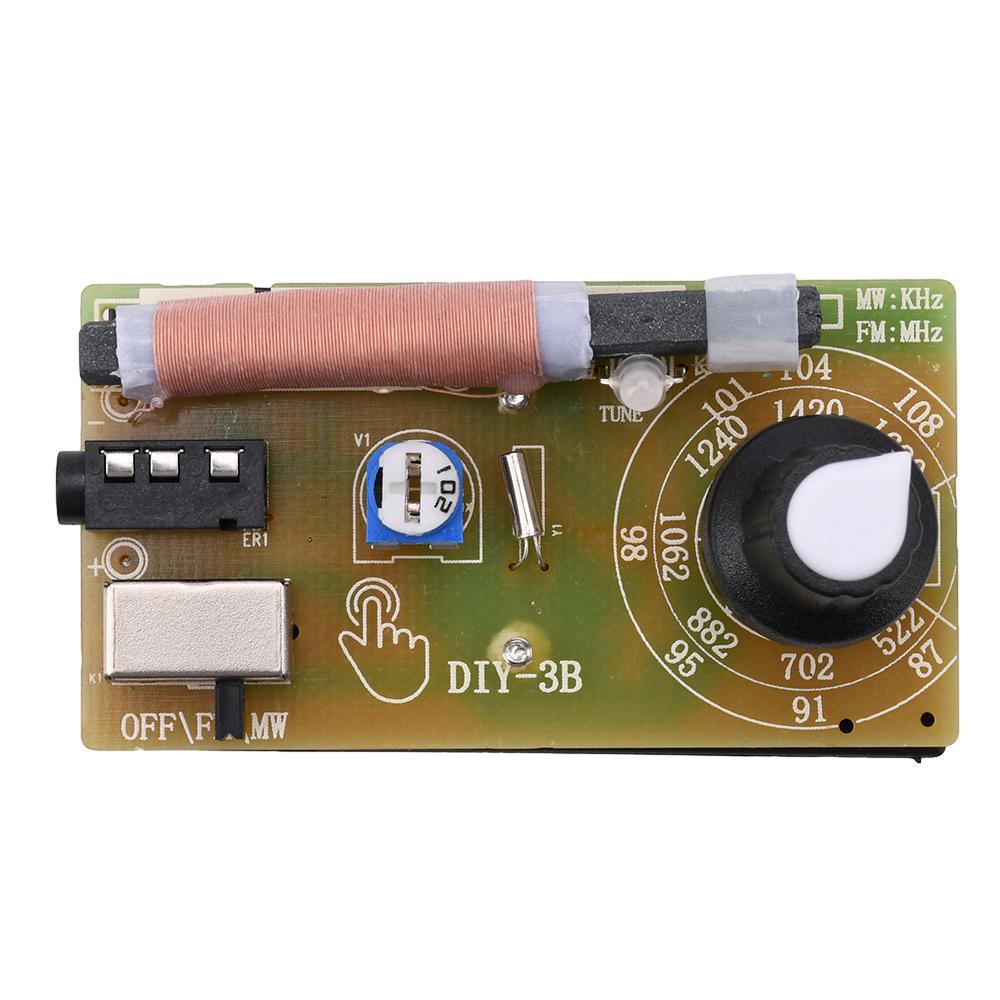

Features: 1. Using high-quality PCB boards, you can choose to solder the finished product or DIY loose parts kit to make it yourself. 2. Multiple styles are available, including AM/FM manual tuning and FM band stereo digital tuning options. 3.2 power supply methods, manually adjustable AA battery power supply, stereo digital tuning model can support AA battery power supply or TYPE-C port power supply. 4. Easy to use, install two batteries or input DC 5V power into the TYPE-C port, press the power switch button to insert stereo headphones, and you can enjoy stereo programs. 5.The DIY kit includes a wide variety of electronic components, which can be used to learn electronic circuits and cultivate hands-on skills. Parameter: Band type: AM/FM medium wave frequency modulation two bands Power supply mode: battery powered/TYPE-C interface Input voltage: Battery 1.5V * 2; TYPE-C interface DC5V Frequency coverage: 87.0-108.0MHz Noise limiting sensitivity: -5dBu Audio output power: 20MW Stereo separation: 26dB Signal to noise ratio: 54dB Adjacent frequency suppression ratio: 34dB Volume segment code: 0 → 15 segments Number of storage units: 0 → 63 Battery model: AA [No. 5 battery] (shipping does not include batteries) PCB board size: 60mm * 32mm Headphone socket: Regular 3.5mm diameter headphones can be used. Install two AA batteries or TYPE-C ports to input DC 5V power. Press the power switch button to insert stereo headphones and enjoy stereo programs.

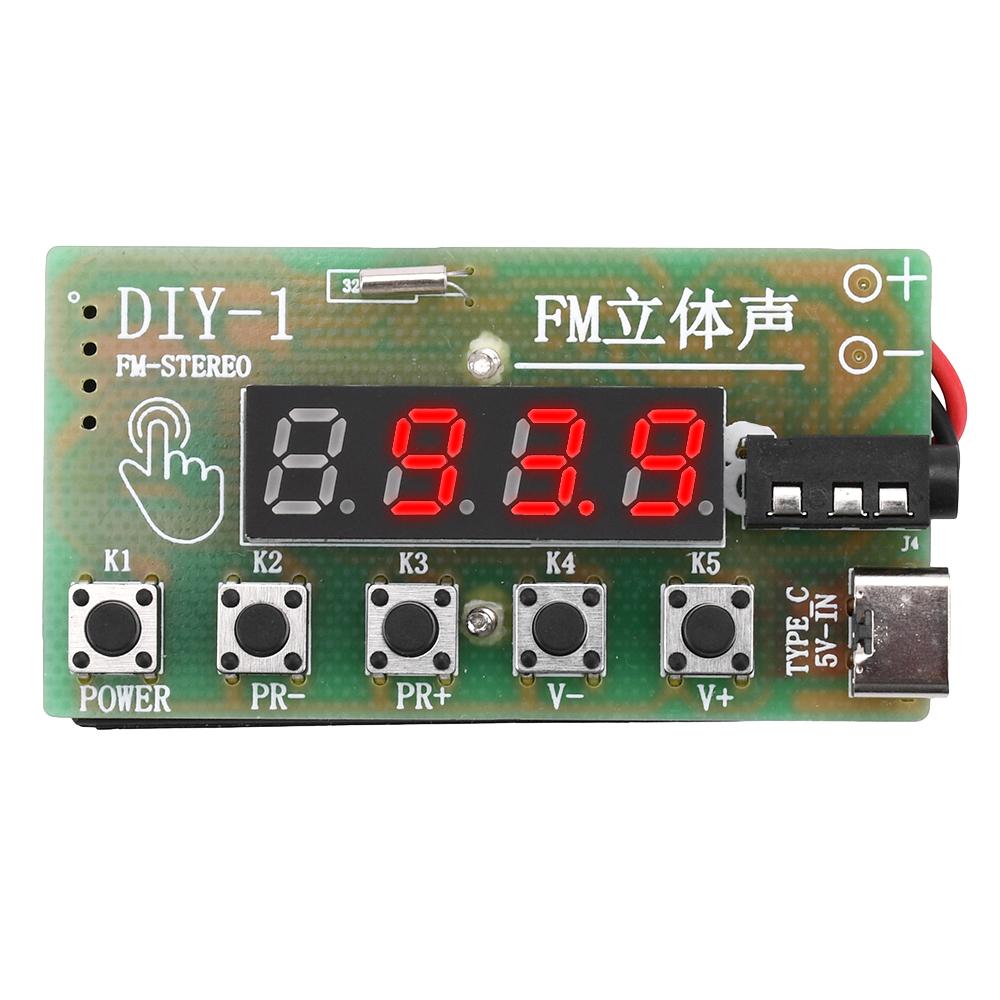

Operating manual: 1. First use with a No. 5 battery (some models support TYPEC), then plug in the headphones and go to a high place or open space; 2. Press the power button (first on the left), the display screen will light up, and the headphones can receive radio or "rustling sound"; 3. After pressing the power switch for two seconds and releasing it, the product enters automatic station search mode, and the display screen shows the progress of station search. When encountering a radio station, it will be automatically stored; 4. Press the FP button once to reduce the frequency by one number, hold down the frequency to quickly decrease, and automatically stop playing when encountering a radio station; 5. Press the FP+button once to increase the frequency by a certain number. If you hold down the frequency, it will increase rapidly. When encountering a radio station, it will automatically stop playing; 6. Press the V - button once to reduce the storage address by one number, and hold down the volume to quickly decrease until no radio sound can be heard; 7. Press the V+button once to increase the storage address by one number. If the volume is not played down, it will increase rapidly until the radio station reaches its maximum volume; &Anti drowsiness function: After 59 minutes of booting up, there are no button operations. The anti drowsiness function is activated and will automatically turn off the radio power within 60 seconds, causing the product to enter sleep pause! Package include: Package 1: Radio module * 1 (welded finished product) Package 2: Radio DIY loose parts material package * 1 (not welded, customer needs to weld it themselves)
