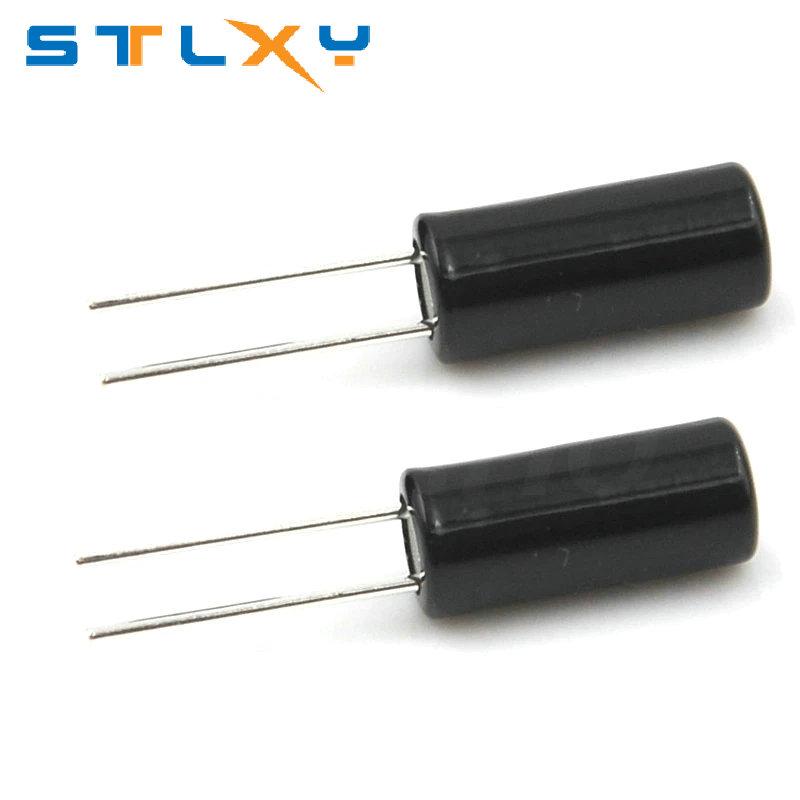

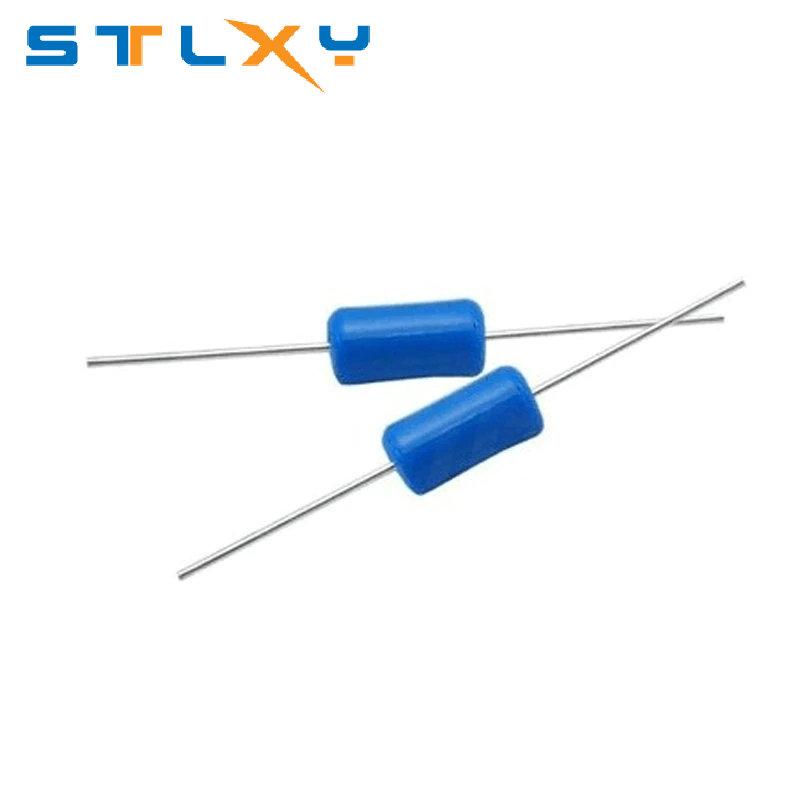

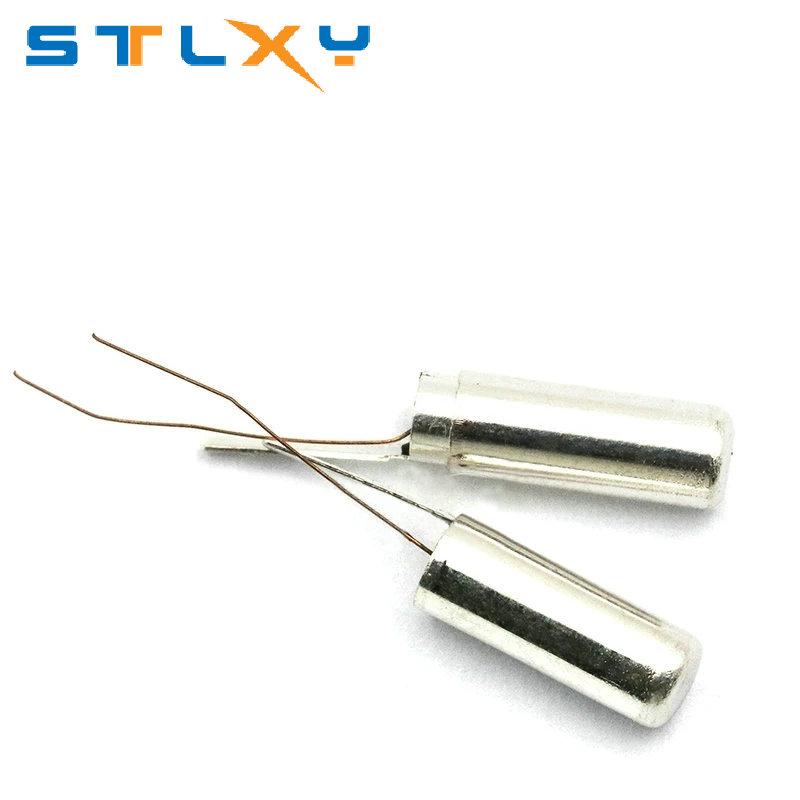

10PCS Highly Sensitive Shaking Switch SW-200D Ball Angle Tilt Switches Vibration Sensor Metal Ball Tilt Wholesale SW-520D

High-concerned chemical : none EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc Material : Alloy Certification : NONE Switch Type : Sensor Switch Model Number : Highly Sensitive Shaking Switch SW-200D Ball Angle Tilt Item Type : SWITCHES Brand Name : Stlxy Origin : Mainland China

Feature: 1,the switch is manufactured using metal , mercury switches and electrical characteristics are similar but not dangerous mercury switches and environmental issues , and when shaking single pass of the same characteristics as the wizard , the assembly is more convenient and safe to use ; 2,the operating characteristics : in the rest state the switch , as shown in (ON) below the level of the end of 15 degrees , the switch is in the ON state ; when the (OFF) side lower than 15 degrees , the switch is in OFF state ; when reached by external shaking forces and shaking , or conduction angle set in the range of electrical characteristics of the conductive pin will produce short or continuous conduction . 3,when the electrical characteristics of the open state to be restored (OFF), switch to set the environment must be static, and (OFF) below the level required to set up the open end angle ; 4,the switch all the materials used are environmentally friendly raw materials. 5,when the switch is OFF side angle of 15 degrees below the horizontal , while shaking difficult to trigger conduction ; 6,the trigger switch for low current circuit , does not apply when the power switch ; 7, this switch is a sealed package, dustproof, waterproof ; 8 ,the ball switch series switch conduction best results, the highest sensitivity . Blue Vibration Sensor Ball Switch Model:                 SW420 Voltage:               Less 24V Current:              Less  1mA temperature:      Less  80C 1. This product SW-420 is a single roller type omnidirectional induction trigger switch. This product can produce vibration and tilt in different directions. 2. When there is no vibration or tilt, the product is in the closed loop 0N/OFF state and is in a stable state. When there is vibration or tilt, the conductive resistance increases or decreases, and a current pulse signal is generated, thereby triggering the circuit. 3. This product is suitable for tilting and vibration induction triggering of small current circuits.

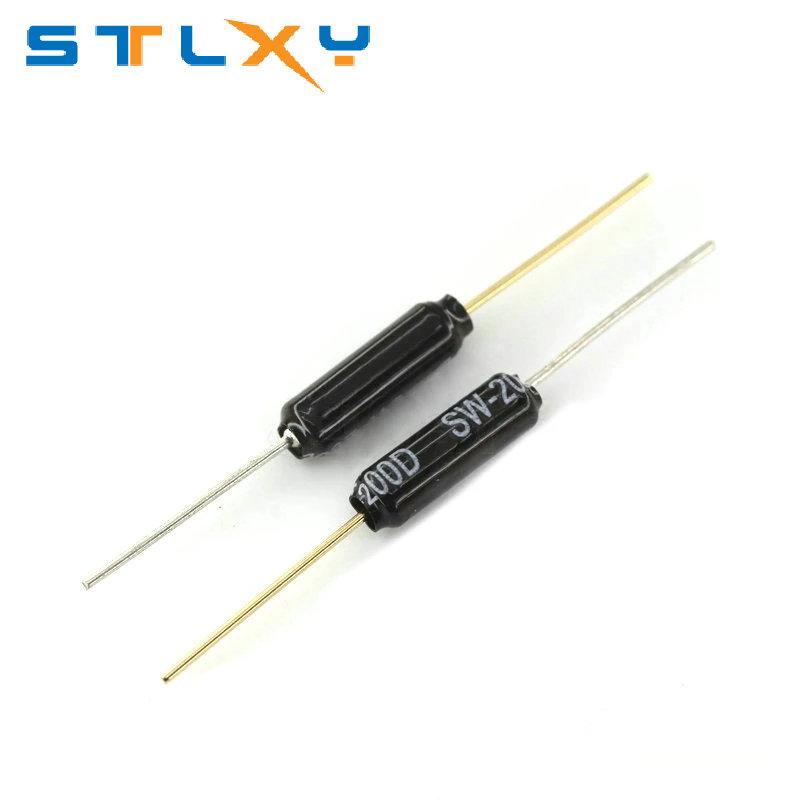

SW-200D Vibration Sensor Ball Switch Model:                 SW-200D Voltage:               12V Current:              2mA temperature:      Less  100C 1. This switch is made of metal material. The electrical characteristics are similar to those of mercury switches. However, there is no danger of mercury switch and environmental protection problems.When shaking, it has the same characteristics of single-pass, and it is more convenient and safe to assemble. 2. Working characteristics: the golden end is (ON) conduction trigger segment, silver end (OFF) open end, when the external force is shaken to achieve proper shaking or the golden end is set at an angle lower than the horizontal proper angle, the electrical characteristics of the conductive contact pin will be A short-time conduction or continuous ON state is required. The lighting setting environment must be stationary, and the silver end should be set at an angle lower than 10 degrees. 3. When the switch is set lower than the horizontal setting, the shaking time can be lightly triggered, and when the silver end is set downward, the shaking is not easy to trigger.

4. This switch is suitable for triggering small current circuits not suitable for power switch.

SW-520D Ball Switch Vibration Sensor Copper Shell Model:                 SW-250D Voltage:               12V Current:              20mA temperature:     100C 1. SW-520D is a ball type tilting vibration sensing single directional trigger switch. 2. When the product is tilted to the cap end and the tilt angle is greater than 10 degrees, it is open 0FF state, when the product level state is tilted (and the lead is parallel to the plane direction, the upper and lower heights are the same), the trigger end (gold-plated lead end) A and B) are closed-circuit 0N states when the horizontal tilt angle is greater than 10 degrees. 3. When the product is tilted toward the cap end and the tilt angle is greater than 10 degrees, it is open 0FF state, when the product level state sounds the tilt change (and the lead is parallel to the plane direction, the lead is a height above), the trigger end (gold plating) When the foot ends A and B) are below the horizontal tilt angle by more than 45 degrees, they are in the closed loop 0N state. 4. This specification is a completely sealed package, which is waterproof and dustproof, and the packaging material is heat shrinkable material. 5. Under normal use conditions, the switch life can reach 100,000 times.

SW-520D Ball Switch Vibration Sensor Copper Shell Model:                 SW-250D Voltage:               12V Current:              20mA temperature:     100C 1. This switch is made of metal material. The electrical characteristics are similar to those of mercury switches. However, there is no danger of mercury switch and environmental protection problems. When shaking, it has the same characteristics of single-pass, and it is more convenient and safe to assemble. 2. Working characteristics: If the installation diagram (ON) is 90 degrees, and the (OFF) opening angle is 180 degrees, when the external force is shaken to reach the appropriate swaying power, or when the setting angle is lower than the conduction angle of 90 degrees. The electrical characteristics of the conductive pin will cause the product to be turned on or continuously turned on for a short time. 3. When the electrical characteristics are to be restored to the open state (OFF), the switch setting environment must be stationary, and the (OFF) open end angle must be lower than the horizontal angle. 4. When the switch is set at 30 degrees below the horizontal angle, it is extremely difficult to trigger when shaking. 5. This switch is suitable for triggering small current circuits not suitable for power switch.

SW-18010P high sensitivity vibration sensor switch Model:                 SW-18010P Voltage:               12V Current:              0.2mA temperature:     100C 1. When the switch is at rest, it is in an open (OFF) state. When an external force collides to reach a proper vibration force, or when the moving speed reaches an appropriate (biased) heart force, the conductive pin will instantaneously turn on (ON) state. The electrical characteristics change, and when the external force disappears, the electrical characteristics return to the open (OFF) state. 2. no directional, any angle can trigger the work. 3. The product is completely sealed and can be waterproof and dustproof. 4. Trigger sensitivity can be selected according to the needs of the circuit. 5. This switch is suitable for triggering of small current circuits. label:yes
