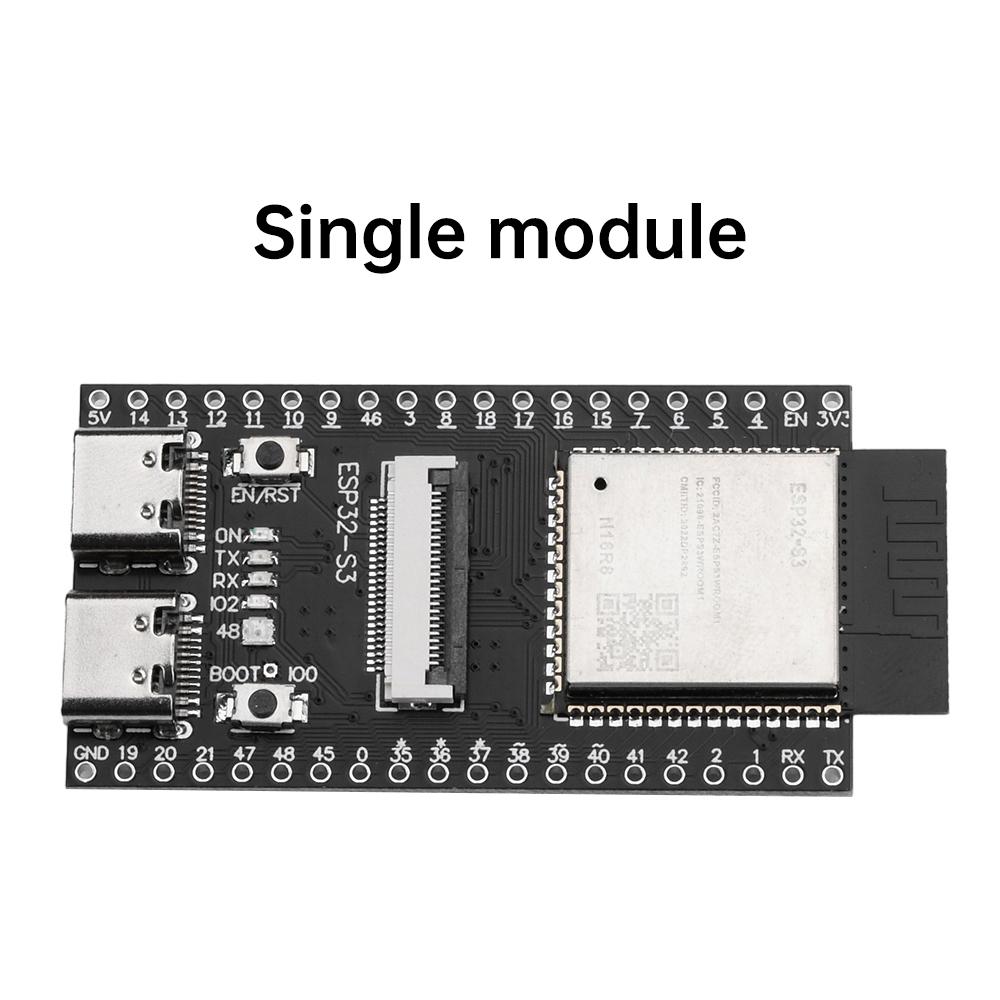

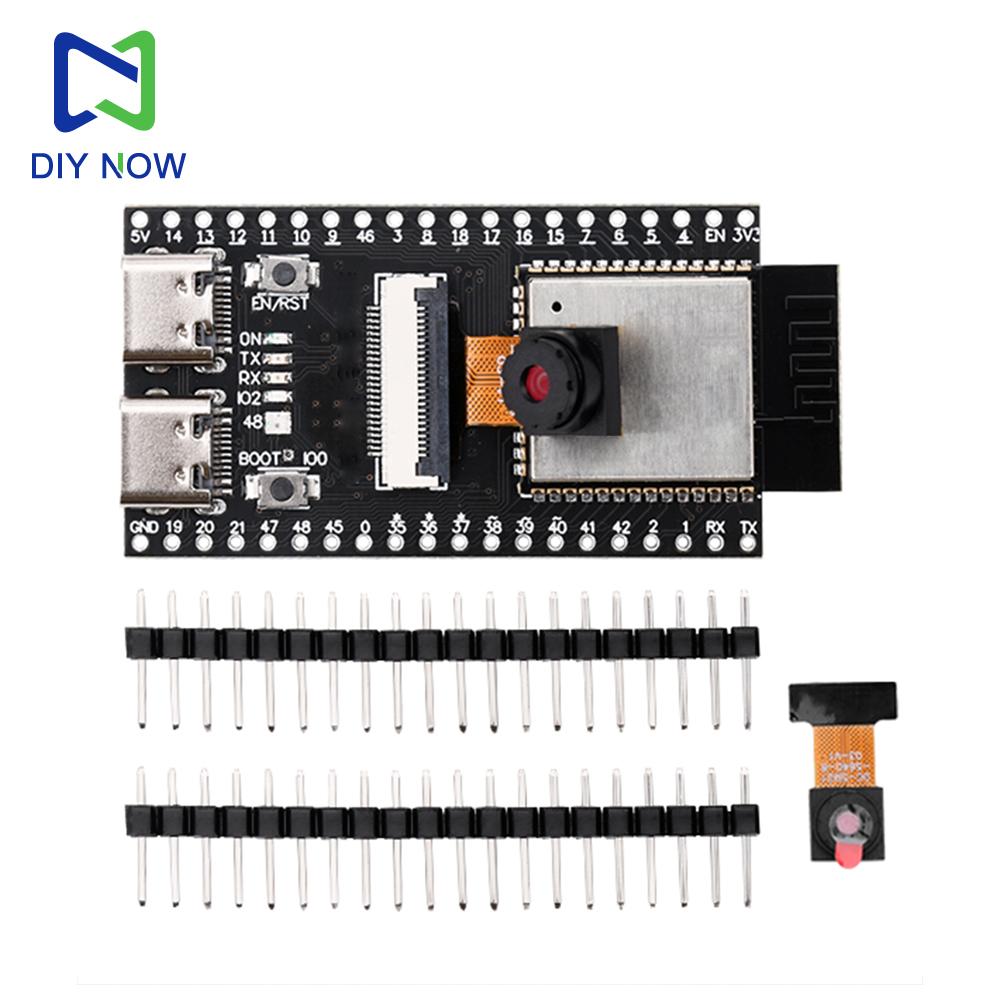

ESP ESP32-S3 CAM WiFi Bluetooth Development Board Module Onboard ESP32-S3 N16R8 Dual TYPE-C OV2640 /OV5640/OV3660 Camera

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : 3-3.6V Application : Smart Devices Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -40-65°C ESP32 cam : ESP cam ESP32 cam ai thinker ov5640 : Dual camera board ESP32 s3 n16r8 : ESP32 s3 cam esp32 camera : ESP Supports : WiFi and Bluetooth

Dual-Mode Wireless & Low-Power Excellenceequipped with a Complete Wi-Fi Subsystem (IEEE 802.11 b/g/n) and Bluetooth LE 5.0/Mesh Dual-Mode Wireless Communication. Supports 2.4 GHz Band (20/40 MHz Bandwidth), Data Rates Up To 150 Mbps, and Multiple Low-Power Modes – ideal for battery-powered devices, extending runtime while maintaining stable connectivity. Wi-Fi & Bluetooth Coexist Seamlessly, Sharing The Same Antenna For Simplified Design.

Powerful Processor & Ample Storagefueled By Xtensa® Dual-Core 32-Bit LX7 CPU (Up To 240 MHz), Paired With 384 KB ROM, 512 KB SRAM, 16 KB RTCSRAM, And 8 MB PSRAM. Handled Complex Algorithms, Multitasking, And Data-Intensive Applications Effortlessly – perfect for IoT gateways, smart sensors, and multimedia projects.

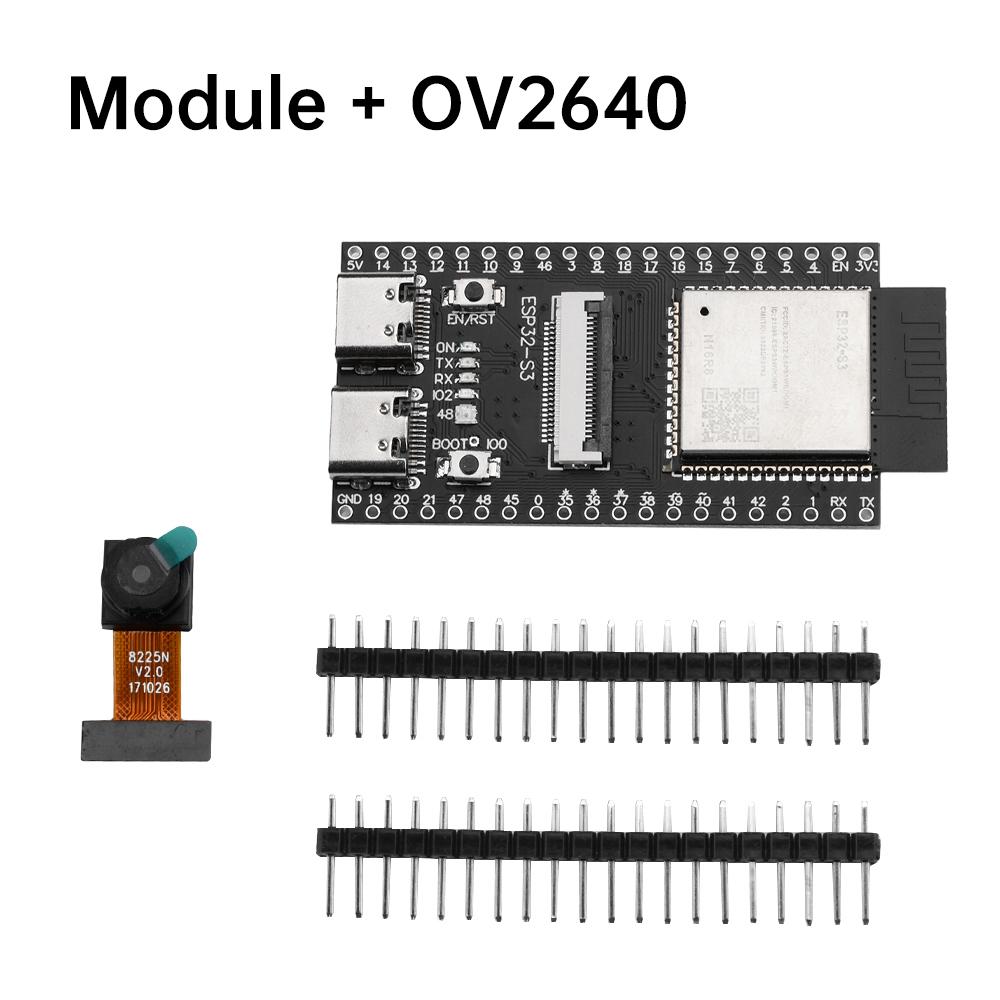

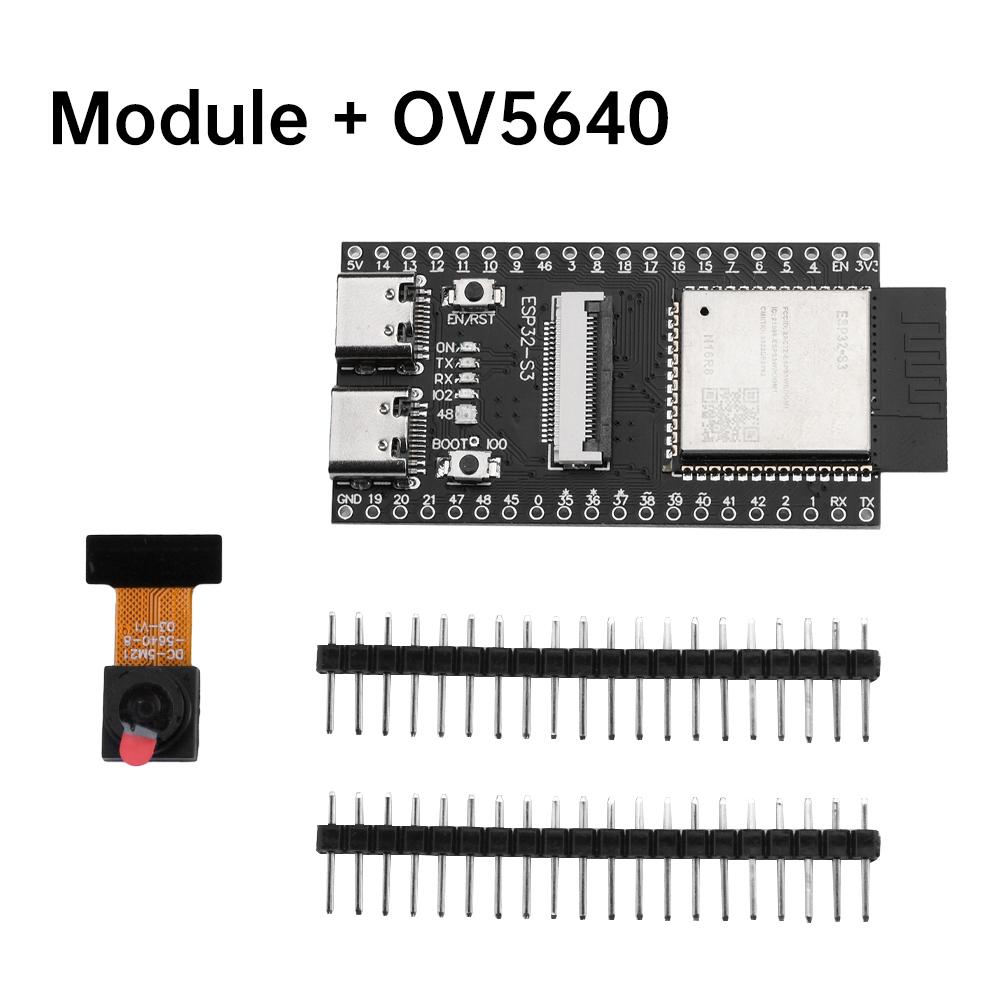

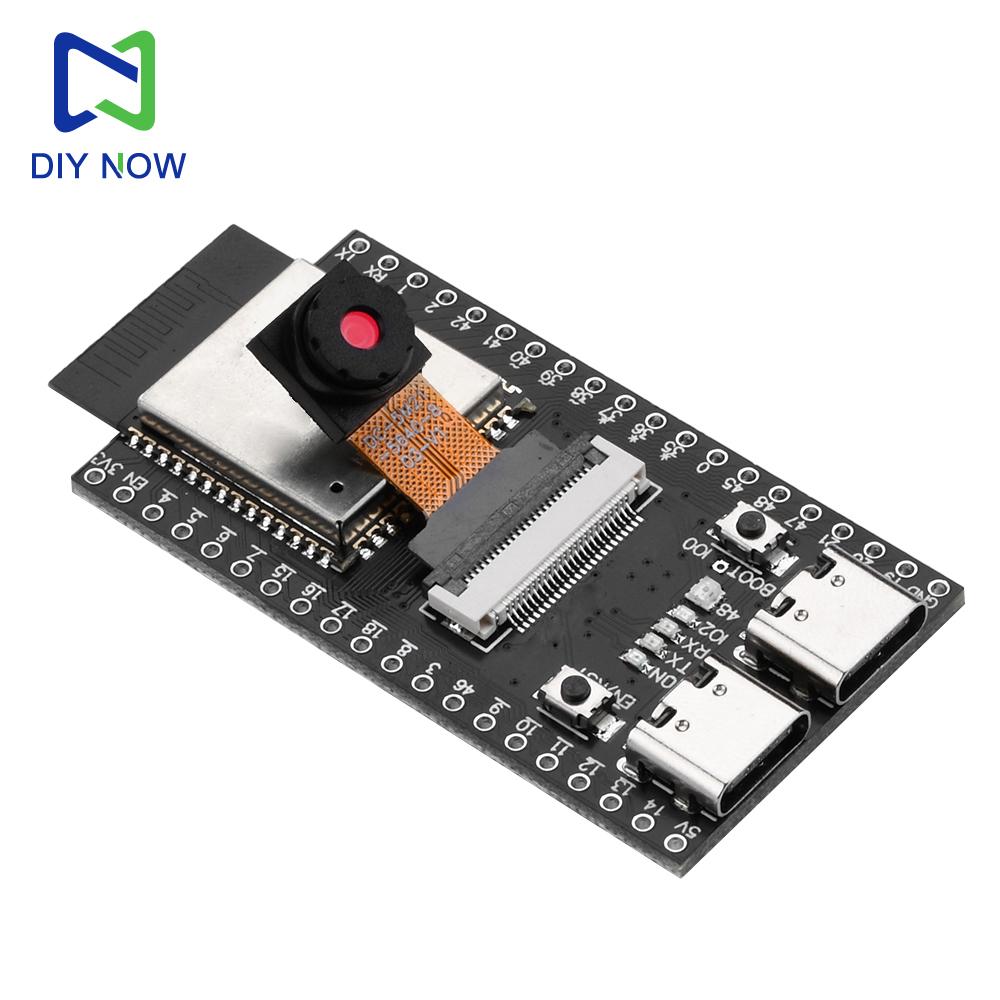

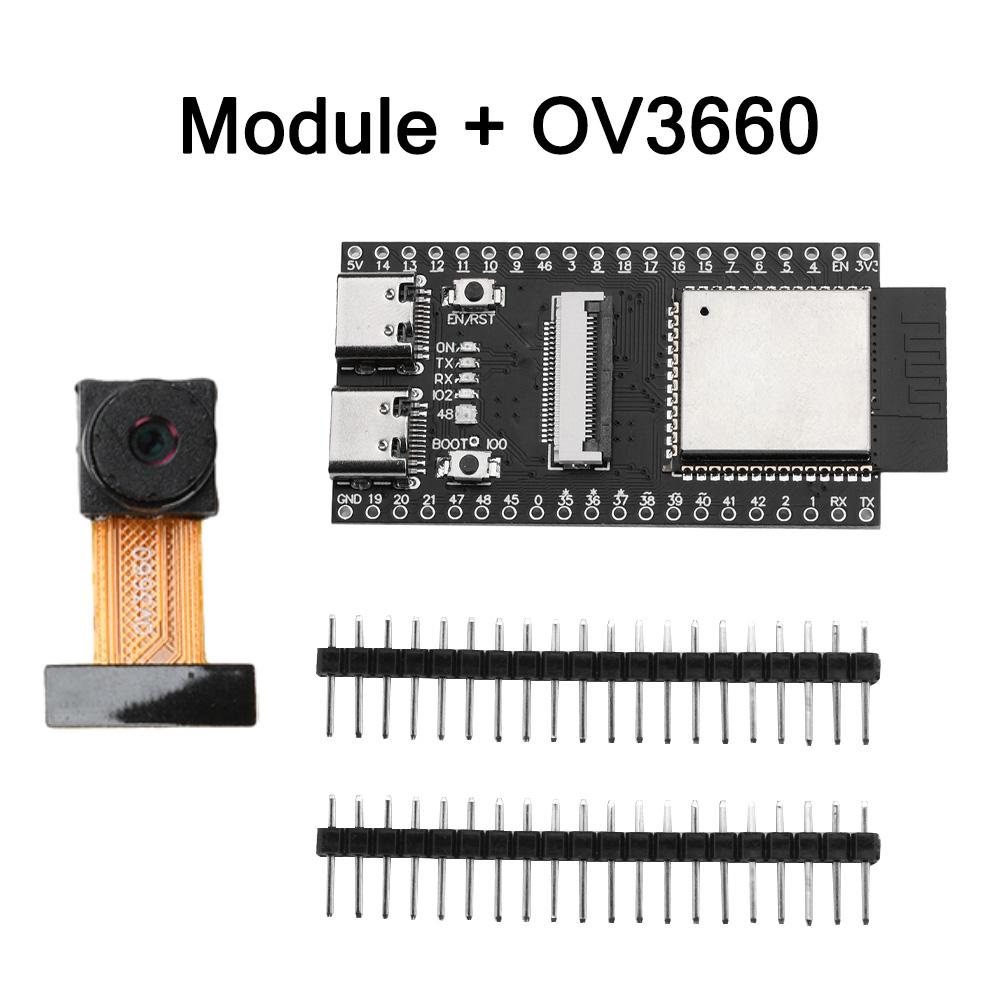

Versatile Peripherals & Expansion Optionsboasts 45 GPIOs, 2×12-Bit ADC (Up To 20 Channels), And A Wealth Of Digital/Analog Interfaces: 4×SPI, 3×UART, 2×I2C, 2×I2S, 1×USB OTG, 1×LCD Interface (RGB/8080/MOTO6800), 1×DVP Camera Interface (8-16 Bit), And More. Supports Optional OV2640/OV5640/ OV3660 Cameras For Image Capture Projects, Plus Hardware Security Mechanisms To Meet Strict Security Requirements.

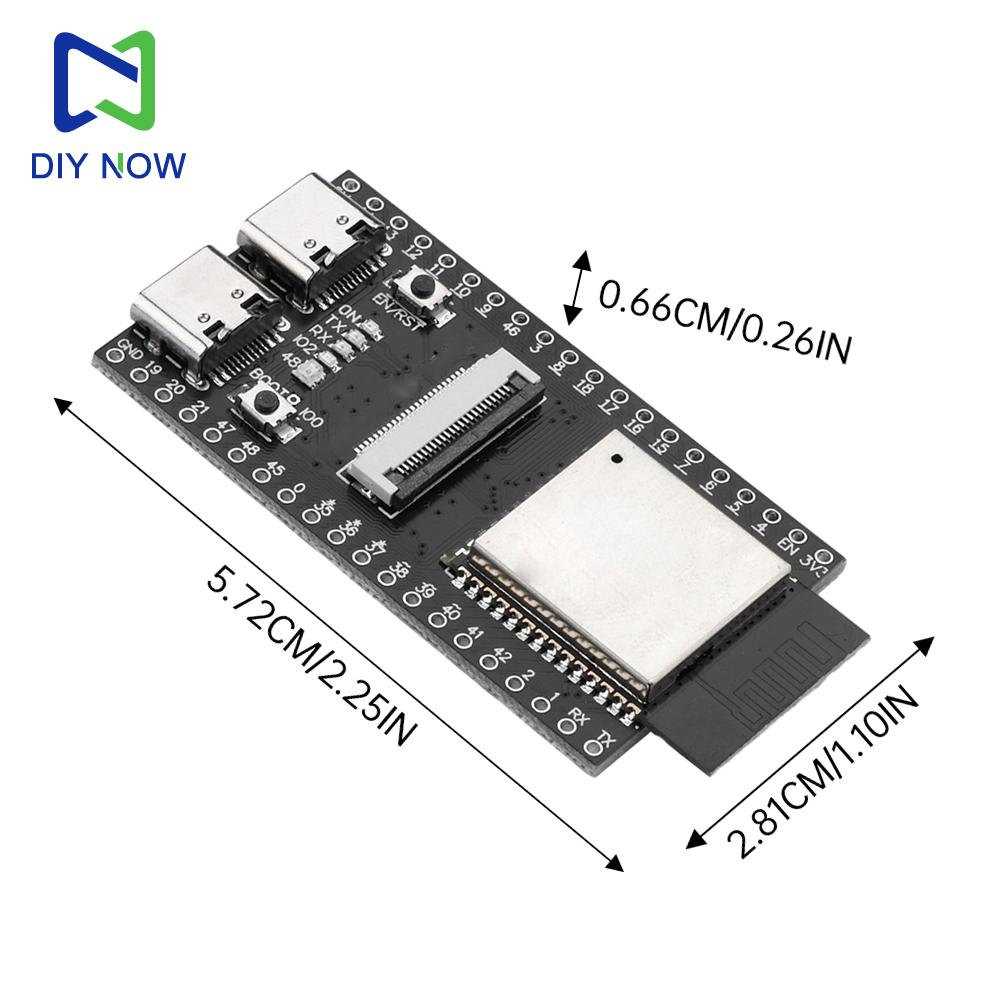

Industry-Grade Reliability & Compact Designo perates In A Wide Temperature Range (-40°C To 65°C), Making It Suitable For Suitable for indoor/outdoor, industrial, and automotive electronics applications. Its compact size (57mm × 28mm) saves space in your projects, while the onboard PCB antenna ensures strong RF performance and anti-interference capabilities.

Advanced Features For Professional Projects: Includes Antenna Diversity, 802.11mc FTM, external power amplifier support, advertising extensions, and multiple advertisement sets. Features a general DMA controller (5 RX/5 TX channels), TWAI controller (CAN 2.0 compatible), LED PWM controller (up to 8 channels), and capacitive sensing GPIOs – empowering you to build sophisticated, feature-rich devices. It's a versatile choice for robotics, smart devices, and machine vision applications in the lab or in the field.

Category Specifications Controller Xtensa® Dual-Core 32-Bit LX7 CPU, Up To 240 MHz Storage 384 KB ROM, 512 KB SRAM, 16 KB RTCSRAM, 8 MB PSRAM Operating Voltage 3V – 3.6V Wireless Connectivity Wi-Fi (IEEE 802.11 b/g/n, 2.4 GHz, 150 Mbps Max); Bluetooth LE 5.0 Wireless Features 20/40 MHz bandwidth, Wireless multi-mode, Frame aggregation, Immediate block acknowledgment, Antenna diversity Peripherals 45 GPIOs 2×12-Bit ADC (20 Channels) 4×SPI, 3×UART, 2×I2C, 2×I2S; 1×USB OTG Camera Support Optional OV2640/OV5640 / OV3660 Cameras Temperature Range -40°C To 65°C Dimensions 57mm × 28mm Security Integrated Hardware Security Mechanisms Antenna PCB Onboard Antenna

Application Scenarios Ideal For IoT Devices, Smart Home Appliances, Wearable Tech, Industrial Control Systems, Automotive Electronics, Wireless Sensors, Camera Modules, Media Players, And Embedded Projects. Whether You’re A Hobbyist, Student, Or Professional Engineer, This Board Delivers The Performance And Flexibility To Turn Your Ideas Into Reality!

WIFI Supports IEEE 802.11 B/G/N ProtocolsSupports 20 MHz And 40 MHz Bandwidth In The 2.4 GHz BandSupports 1T1R Mode With Data Rate Up To 150 MbpsWireless Multimedia (WMM)Frame Aggregation (TX/RX A-MPDU, TX/RX A-MSDU)Immediate Block Acknowledgement (ImmediateBlock ACK)Fragmentation And Defragmentation - Beacon Automatic Monitoring (Hardware TSF) - 4×Virtual Wi-Fi InterfacesSupports Infrastructure Network (Infrastructure BSS) Station Mode, SoftAP Mode And Station+ SoftAP Promiscuous Mode Simultaneously. Please Note That When ESP32-S3 Scans In Station Mode, The SoftAP Channel Will Change At The Same Time.Antenna Diversity802.11 MC FTMSupports External Power Amplifier

BLUETOOTH Bluetooth Low Energy (Bluetooth LE): Bluetooth 5, Bluetooth MeshHigh Power Mode (20 dBm, Sharing PA With Wi-Fi)Supports Data Rates Of 125Kbps, 500Kbps, 1 Mbps, 2 Mbps.Advertising ExtensionsMultiple Advertisement SetsChannel Selection Algorithm #2Coexistence Of Wi-Fi And Bluetooth, Sharing The Same Antenna

ADVANCED PERIPHERAL INTERFACES AND SENSORS 45 GPIO Ports DIGITAL INTERFACES: 4×SPI 1×LCD Interface (8-Bit/16-Bit Parallel RGB, 8080, MOTO6800), Supports Conversion Between RGB565, YUV422, YUV420, YUV411 1×DVP 8-Bit~16-Bit Camera Interface 3×UART 2×I2C 2×I2S 1×RMT (TX/RX) 1×Pulse Counter LED PWM Controller, Up To 8 Channels 1×Full-Speed USB OTG 1×USB Serial/JTAG Controller 2×MCPWM 1×SDIO Host Interface With 2 Card Slots General DMA Controller (Referred To As GDMA), 5 Receive Channels And 5 Transmit Channels 1×TWAI Controller, Compatible With ISO11898-1 (CAN Specification 2.0)

ANALOG INTERFACES: 2×12-Bit SAR ADC, Up To 20 Channels 1×Temperature Sensor 14×Capacitive Sensing GPIOs TIMERS: 4×54-Bit General Timer 1×52-Bit System Timer 3×Watchdog Timer label:yes
