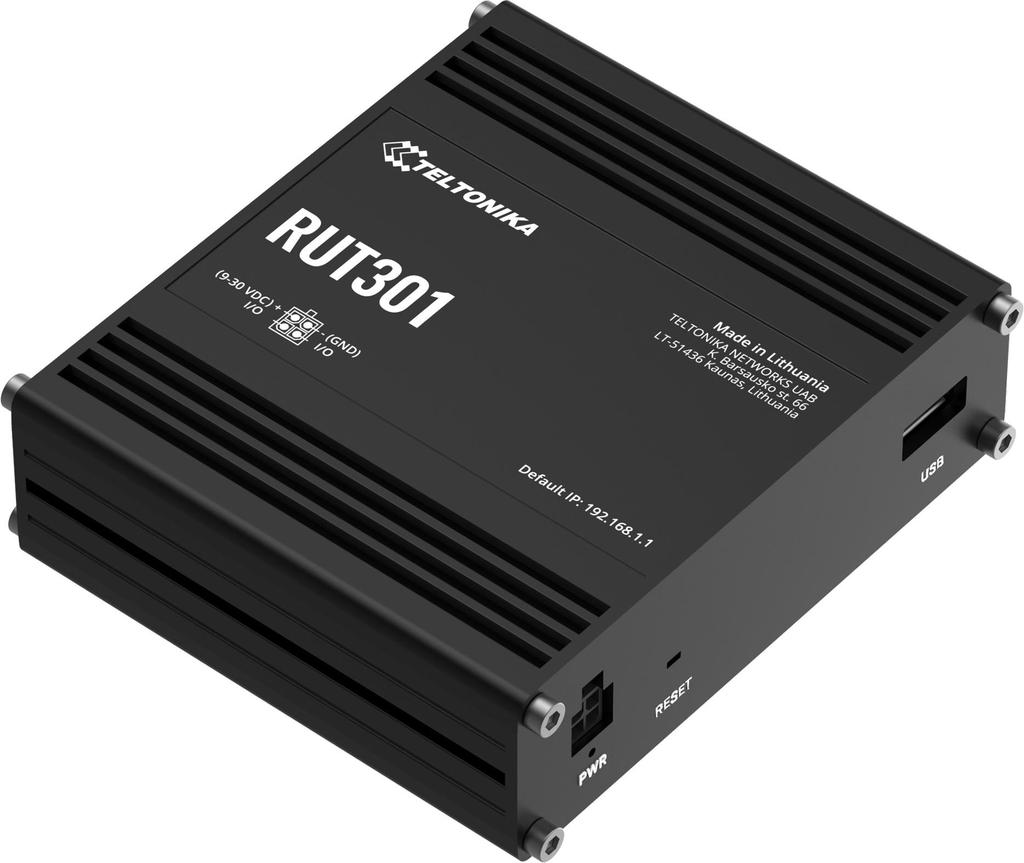

Teltonika RUT301000000 Industrial Router, 5-Port 10/100 Ethernet, USB, I/O

Teltonika RUT301000000 Industrial Router, 5-Port 10/100 Ethernet, USB, I/OTeltonika RUT301000000 Industrial Router, 5-Port 10/100 Ethernet, USB, I/OTeltonika RUT301000000 Industrial Router, 5-Port 10/100 Ethernet, USB, I/OThe Teltonika RUT301000000 Industrial Router is a compact and robust networking device designed for industrial installations and demanding operating environments. It provides five 10/100 Mbps Ethernet ports, USB connectivity and configurable digital I/O interfaces in an aluminium enclosure.

Reliable industrial connectivity The router features one WAN port and four LAN ports with IEEE 802.3, IEEE 802.3u and IEEE 802.3az support. Auto MDI/MDIX functionality simplifies network connections, while static and dynamic routing options support a variety of network architectures.

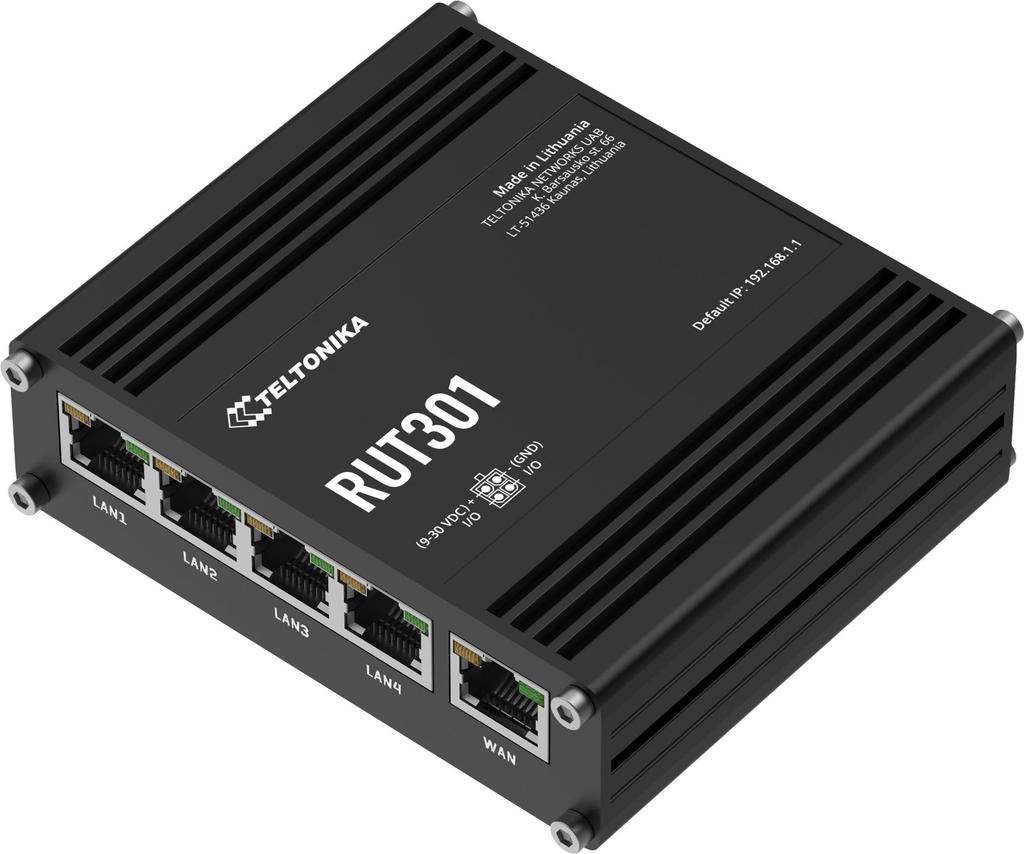

1 × WAN port and 4 × LAN ports

10/100 Mbps Ethernet connectivity

Static routing and dynamic routing with BGP, OSPF v2, RIP v1/v2, EIGRP and NHRP

IPv4 and IPv6 support

VLAN separation based on ports and tags

DHCP server, DHCP relay and static IP allocation

Load balancing and automatic network failover options

Advanced security and VPN functions RutOS, based on OpenWrt, provides extensive tools for secure network management. The router supports firewall configuration, access control, traffic rules, port forwarding, DMZ, NAT, protection against selected denial-of-service attacks and port scanning prevention.

OpenVPN, IPsec, GRE, PPTP and L2TP support

WireGuard, ZeroTier, Tinc, SSTP and DMVPN support

Digital certificates, X.509 certificates, TACACS+ and RADIUS authentication

SSH, HTTPS and CLI access control

Web filtering with blacklist and whitelist options

802.1x port-level network access control

USB and industrial I/O interfaces The USB 2.0 port can be used with external devices such as storage drives, flash drives, printers, additional modems and USB-to-serial adapters. Supported storage formats include FAT, FAT32, exFAT, ext2, ext3 and ext4, while NTFS is supported in read-only mode.

The router also provides up to two configurable digital inputs and up to two configurable digital outputs on the shared industrial connector. I/O Juggler allows configured I/O conditions to initiate events, with notifications available through email and RMS.

Monitoring and remote management The integrated management features include a web interface, SSH, SNMP, MQTT, JSON-RPC API, TR-069 and Teltonika Remote Management System support. Users can monitor traffic, view network topology, manage ports, configure notifications and perform firmware updates. Connection monitoring functions include Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection.

Industrial construction and installation The aluminium housing measures 100 × 30 × 85 mm and weighs 233 g. The router is designed for operation from -40°C to 75°C, with 10–90% non-condensing operating humidity and IP30 protection. It supports optional DIN-rail, wall or flat-surface installation using the appropriate additional mounting kit.

Input voltage: 9–30 VDC

Reverse-polarity and surge/transient protection

Typical power consumption: 0.8 W idle, 3.8 W maximum

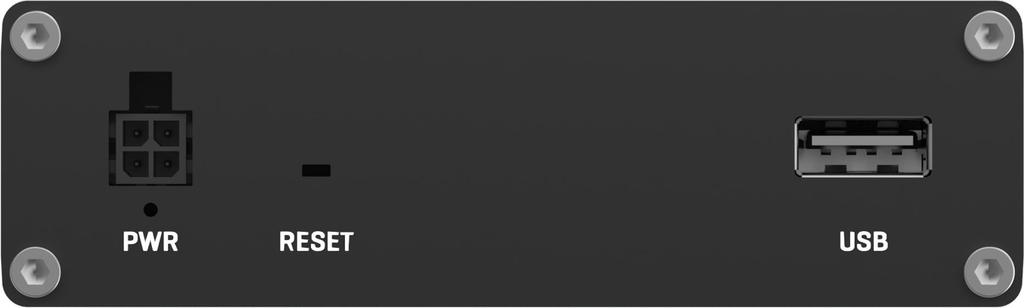

4-pin industrial DC power connector

1 × USB-A port

WAN, LAN and power status LEDs

Package contents The standard package includes the Teltonika RUT301 router, a 9 W power supply with EU plug, a 1.5 m Ethernet cable, a quick start guide and the retail box.75.42TELTONIKA
