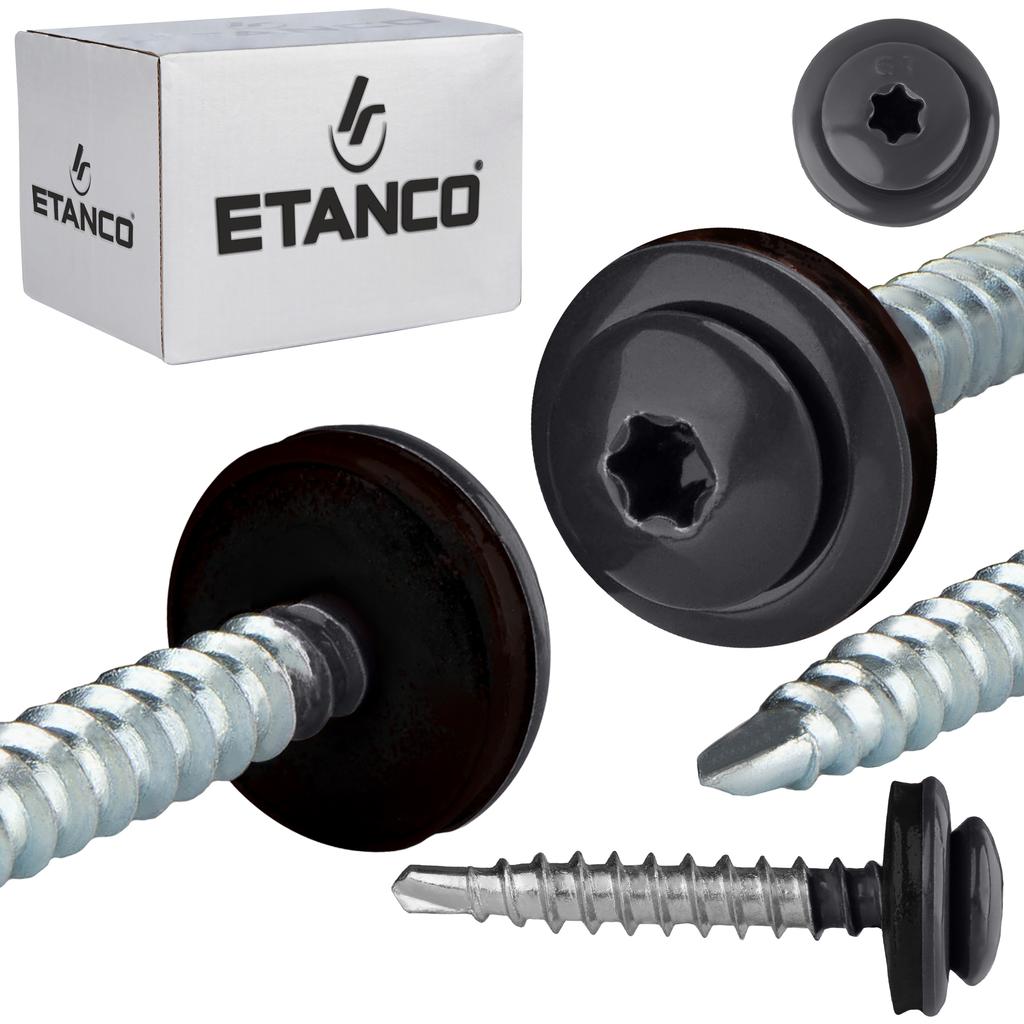

GTFP Panhead Farmer Screws 4.8x35mm RAL 7024

Self-drilling "farmer panhead" screws with TORX socket, equipped with an integrated aluminum washer and EPDM seal

Designed for fastening profiled metal sheets to wooden structures.

The screws can be mounted using a dedicated mounting tip, available under auction number: 7315194959, which makes work much easier.

• Model: GTF P

• Size:4.8 x 35 mm

• Drilling capacity in steel: up to 1 mm

• Maximum usable length: 9 mm

• Socket: TX20

• Material: galvanized steel

• Color: RAL 7024

• Packaging: 250 pcs.

Original Product of the Renowned Company Etanco®

Additional significant anti-corrosion protection and a perfect match to the RAL/NCS color. UV stabilizers ensure color consistency even after several years, and the modern Powder.coat powder coating technology ensures the durability of the coating during installation and a long service life.

2. Aluminum washer

The special shape of the steel washer ensures proper placement of the EPDM sealing material.

3. Aesthetic flat head with TORX socket

The flat head with TORX socket is a solution that combines aesthetics with functionality, making it ideal for applications where the final appearance of the assembly is important. The TORX socket increases work efficiency by reducing the risk of damage.

Unique marking and batch numbering of the brand's products allows for precise identification.

4. EPDM Seal

Made of the best sealing material - EPDM. It does not lose elasticity over time and has a very long aging period. Resistant to changing weather conditions and UV radiation. After installation, it self-vulcanizes to the sheet metal, creating a tight connection.

5. DURA.ZINC Zinc Coating

The basic and most important anti-corrosion protection, and its 20 μm thickness guarantees high quality.

6. Self-drilling and tapping tip

Specially developed self-drilling and tapping tip with a reduced drilling point.

Designed for attaching profiled metal sheets to wooden structures.

1. Base material: wood

2. Screw socket: TORX 20

3. Maximum drilling capacity: 2 x 1 mm

4. Zinc coating thickness: 20 μm

7. Tightening torque:3 Nm

8. Recommended rotational speed during screw installation: 1800 rpm

9. Method of determining the maximum drilling capacity of the fastener

10. Method of determining the maximum thickness of the fastened element

11. Minimum anchorage depth of the fastener: 20 mm

12. Minimum thickness of the sheet metal fastened to the substrate wooden: 1 x 0.5 mm

All our products have current reference documents developed in cooperation with renowned research institutes.

The products we offer are characterized by the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

The auction applies to screws in RAL 7024 color.

Other colors are available in our other auctions.

*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.

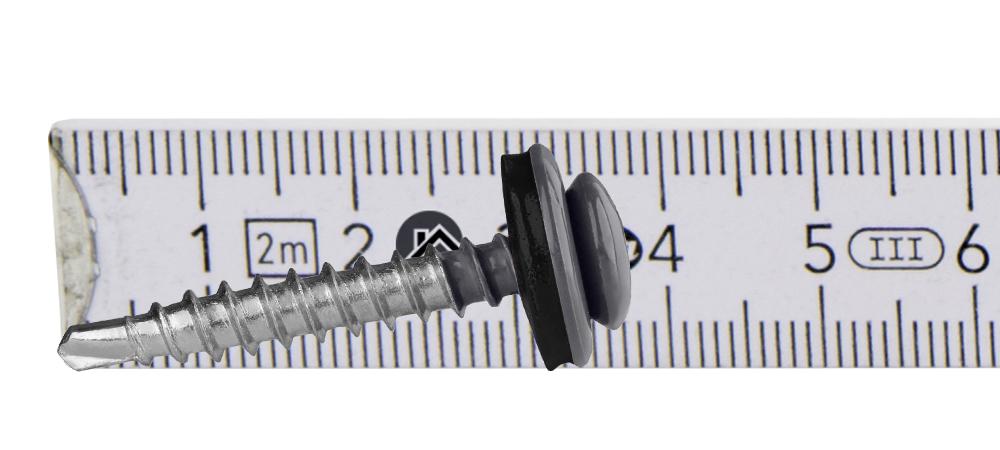

*The measuring tape is not part of the set, it is used only for better product presentation.
