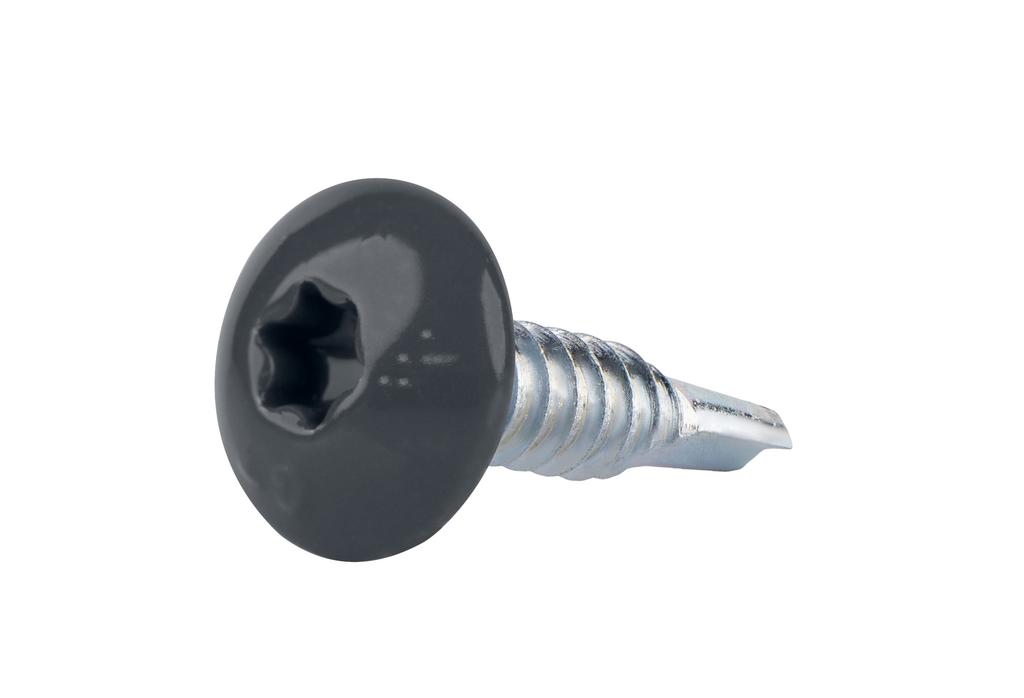

Self-tapping screws GT3 PH 4.8x19mm RAL 7016

Self-drilling screws for metal with TORX socket

Designed for fastening steel sheets to thin-walled steel structures (up to 3 mm thick) and for overlapping structural sheets.

• Model: GT 3 PH

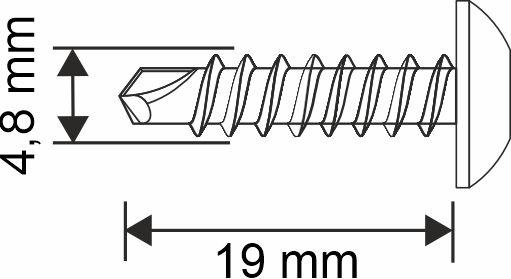

• Size: 4.8x19 mm

• Color: RAL 7016

• Packaging: 500 pcs.

• Capacity Drilling capacity in steel: up to 3 mm

• Maximum usable length: up to 6 mm

• Socket: TX-25

• Material: galvanized steel

• Corrosion class:C1, C2, C3

• Head diameter:11.9 mm

Original product of the renowned company Etanco®

Designed for fastening profiled structural steel sheets to thin-walled steel structures (up to 3 mm thick) and for overlapping thick structural sheets.

Additional significant anti-corrosion protection and a perfect match to the covering color in the RAL palette.

2. TORX socket head

The TORX socket increases work efficiency by reducing the risk of damage and ensuring better torque transfer.

3. Aesthetic flat head

The minimalist, flat head ensures high aesthetics and an elegant appearance after installation, providing an attractive alternative to hexagonal head screws.

4. DURA.ZINC zinc coating

The basic and most important anti-corrosion protection, and its 12 μm thickness guarantees high quality.

5. Self-drilling tapping tip

The specially developed reduced ETANCO.Drill.point self-drilling tip ensures optimal drilling through sheet metal in a short time. The protective layer of the zinc coating does not wear off during drilling. Translucency is 3 mm.

1. Base material: Sheet metal profiled

2. Base material: steel profile

3. Screw socket: TORX 25

4. Maximum drilling capacity: 3.00 mm

5. Zinc coating thickness: 12 μm

8. Recommended rotational speed when installing screws: 1800 rpm

9. Maximum drilling capacity of two elements: 3.00 mm

10. Minimum thickness of the base material:1.00 mm

All our products have current reference documents developed in cooperation with renowned research institutes.

We offer The products are of the highest quality and can be safely used in construction. We make every effort to ensure that the products delivered to our contractors are safe and adapted to specific tasks.

The auction applies to screws in color

• RAL 7016

• other colors,

• different drilling capacities,

• different sizes.

• versions with and without EPDM washers

*Due to different monitor settings, colors may differ from reality, therefore the presented colors are indicative.

*The measuring cup is not included in the set, it is only used for better product presentation.
