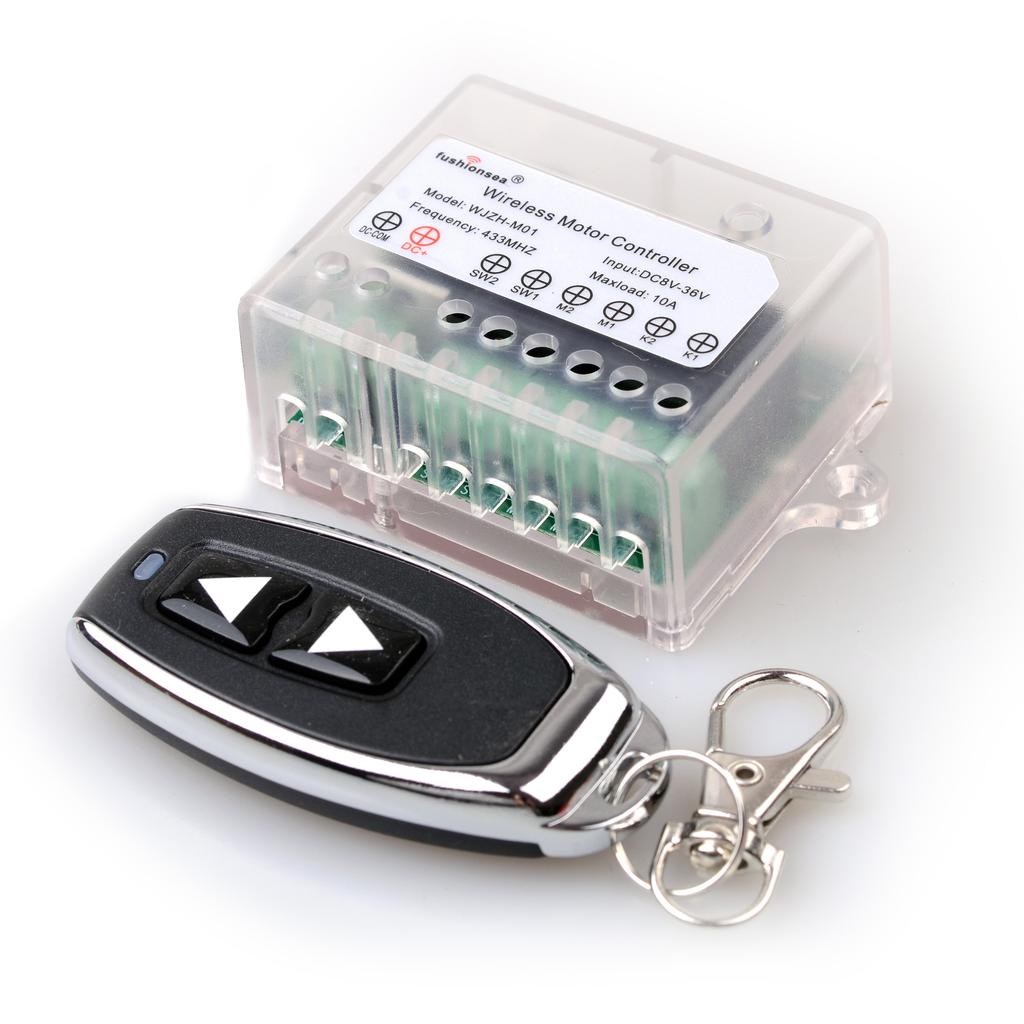

12-36V DC Motor Remote Control Switch For Retractable Door Curtain Electric Push Rod Linear Actuator Forward Reverse Receiver

12 V 24 V 36 V DC motor forward and reverse remote control switch retractable door curtain electric push rod wireless remote control

Features Model :WJZH-M01 Working voltage DC8-36V Quiescent condition Less than 8mA Working temperature -40 Degree +80 Degree Receiver sensitivity more than -105dBm Working frequency 433mhz

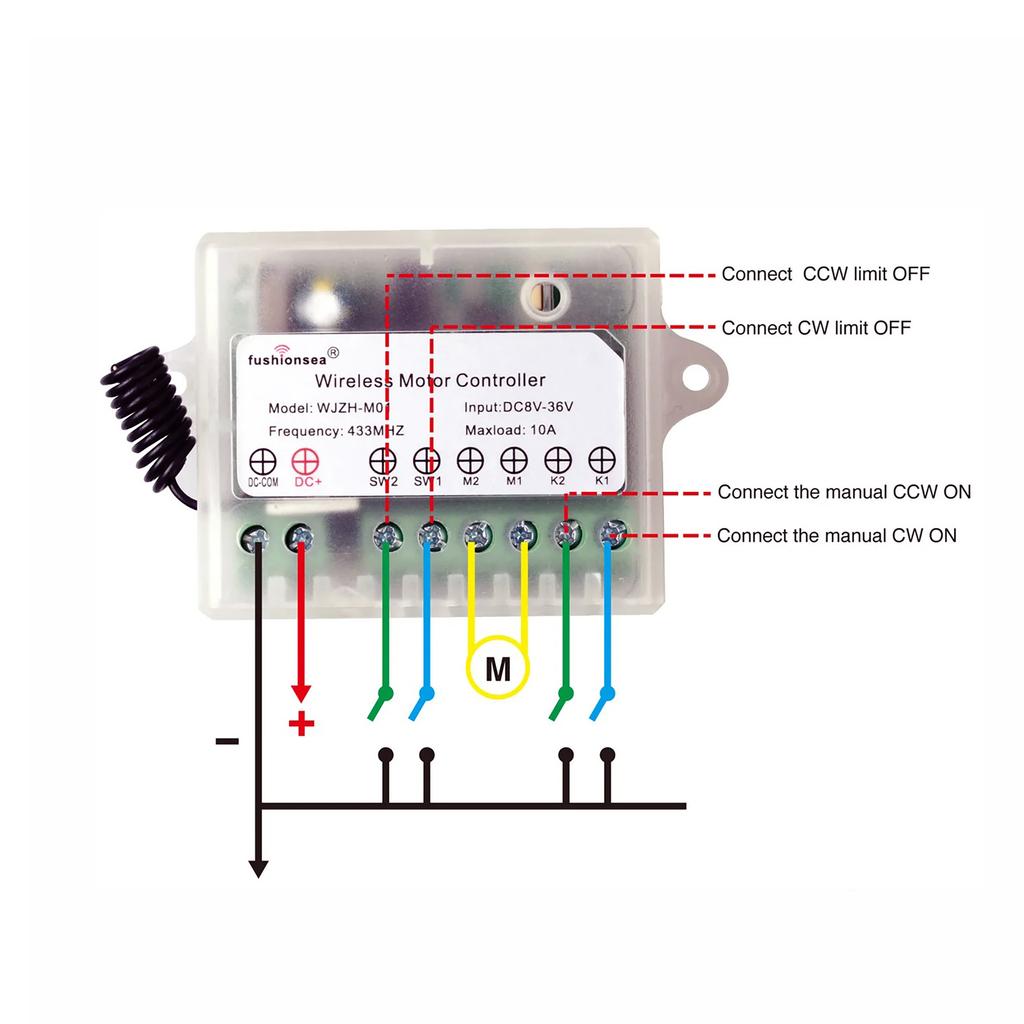

Function Limit & Wire External Button If travel switch is needed, please use normally open type switch Max load 10A （suggest motor load less than 5A）

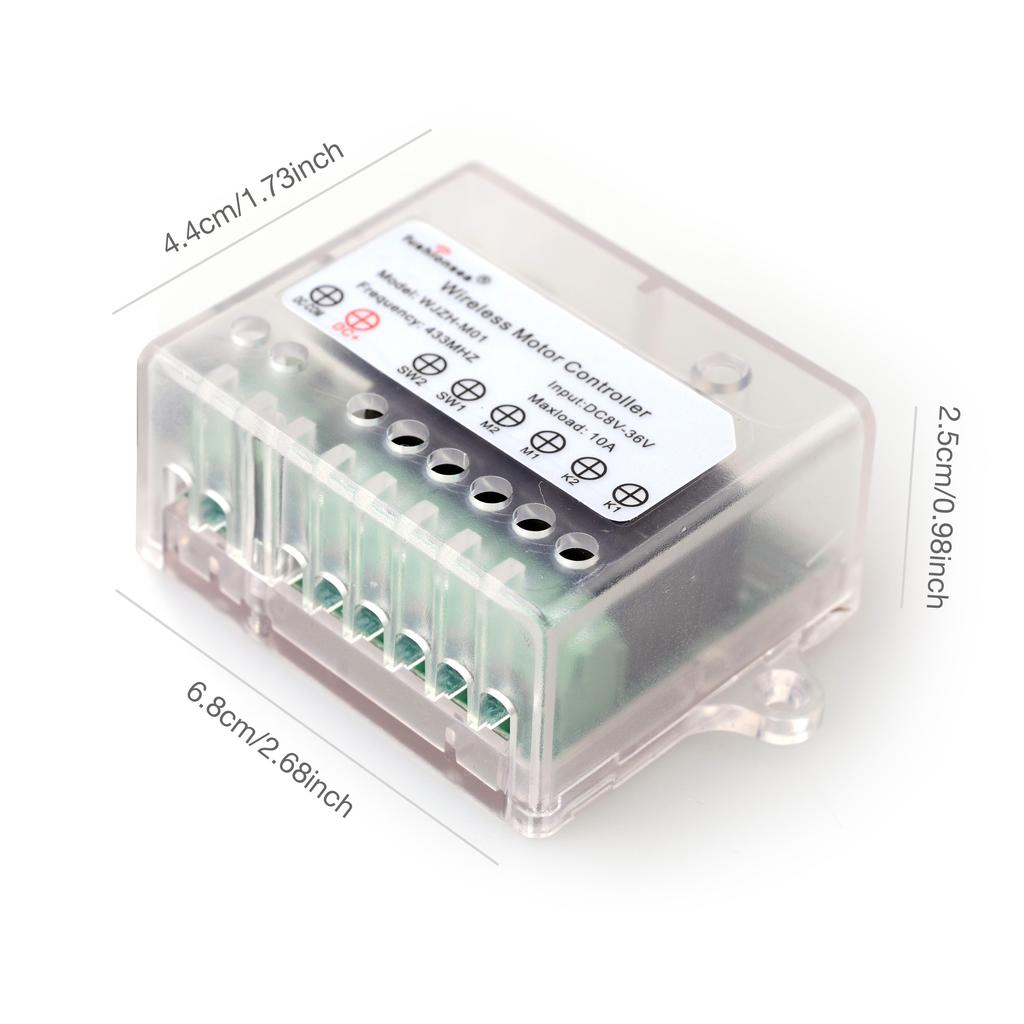

Size 68x44x25mm

Manual control (default momentary) Momentary: The MD soldered dot on the receiver don't need to be connected. Press and hold the external K1 button motor will forward. and the motor stops after Release the button. Press and hold the external K2 button, the motor reverses, and the motor stops after Release the button.

Latched: The MD soldered dot on the receiver need to be connected. Press the external K1 button motor will forward. and the motor stops after press the external SW1 Limit switch. Press the external K2 button, the motor reverses, and the motor stops after press the external SW2 Limit switch.

Working Model Working way changed by learning button on the Receiver

Momentary press and hold the transmitter button up,motor forward.Release the button,motor stop. press and hold the transmitter button down ,motor Reverse.Release the button,motor stop.

Latched press the transmitter button up once,motor forward, press the transmitter button stop,motor stop. press the transmitter button down once, motor reverse, press the transmitter button stop,motor stop.

Learning and clearing Learning Momentary: Press learning button once, the indicator flash once and ON , Then press the transmitter button up ,the learning indicator flash 3 times and ON,Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Momentary model learning Successfully

Latched: Press learning button 2 times, the indicator flash 2 times and ON , Then press the transmitter button up, the learning indicator flash 3 times and ON, Then press the transmitter button stop, the learning indicator flash 3 times and ON again, Then press the transmitter button down, the learning indicator flash 3 times and OFF, It mean the Latched model learning Successfully

Clearning Press learning button 3 times, the learning indicator will flash 5 times and OFF , It mean all the transmitter code in the receiver have been cleared.

Form-factor: Others Frequency: 433 MHz Channel: 1 Brand Name: NONE Package: No High-concerned chemical: none Wireless Communication: RF Model Number: M01 + J027-2 Choice: yes Use: Universal Origin: Mainland China Support APP: No Certification: CE
